Unimog constructional drawing for model making
The constructional drawing for model makers. Here is one of the few existing Unimog drawings in scale 1:8.
Der Komplette Satz Pläne besteht aus:
The complete set of drawings includes:
1300 L 001 Unimog U 1300 L 2t Military DIN A0
1300 L 002 overview chassis DIN A0 *general arrangement of chassis
1300 L 003 load area DIN A0
1300 L 004 interior fittings DIN A0
1300 L 005 gear DIN A1
1300 L 006 frame DIN A1
1300 L 007 front axle DIN A3
1300 L 008 rear axle DIN A3
1300 L 009 tyre with rim DIN A3
1300 L 010 tank and spare wheel holder DIN A3
1300 L 011 pressure tank DIN A4
1300 L 012 box and holder DIN A4
1300 L 013 clutch DIN A4
1300 L 014 detail 1 DIN A4
1300 L 015 detail 2 DIN A4
If you are interested in an original drawing, please do not hesitate to contact me:
ThorstenNiggemann@web.de
For € 46.50 you can order the complete set of 15 drawings from me.
If you do not want the whole set at once, you can order single drawings.
All views are shown in drawing: „1300 L 001 Unimog U 1300 L 2 t Military A0“. If you would just like to get a general arrangement, it is advisable to order this drawing first.
e. g. the single DIN A0 drawing costs € 7.50
The complete set can be ordered, reduced to 15 pages DIN A4 including post and packing for €5,50.

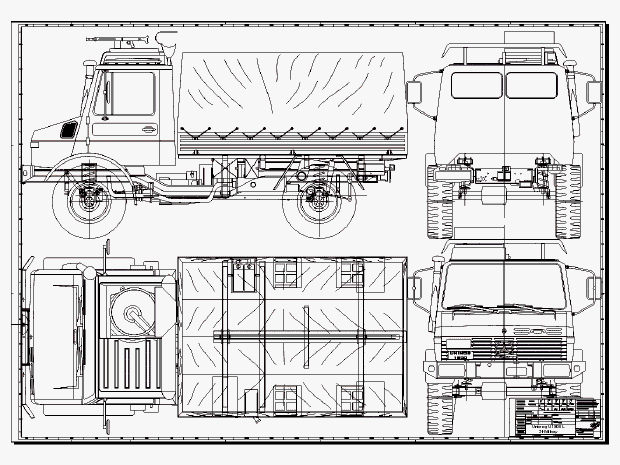

1300 L 001 Unimog U 1300 L 2t Military A0
1300 L 002 Übersicht Fahrgestell A0
1300 L 007 Vorderachse A3
1300 L 012 Kiste und Halter A4
1300 L 010 Tank und Reserveradhalter A3
1300 L 005 Getriebe A1
To get some idea, you can download one part of the plan. Try it out!
